servers harddisk Rigid flex china pcb manufacturer
产品详情



Description of products:


High - speed server hard disk, high - density interconnect flexible PCB.In order to ensure the matching of signal and impedance,through testing of various materials and optimization of process, each product guarantees good electrical performance and IPC quality requirements.


Layers

14L

Size

460*420mm

Structure

4L FPC + 10L PCB

Thickness:

1.6mm

Hole

0.2mm

Hole copper

20um

Aspect ratio

8:1

Impedance Tolerance

±10%

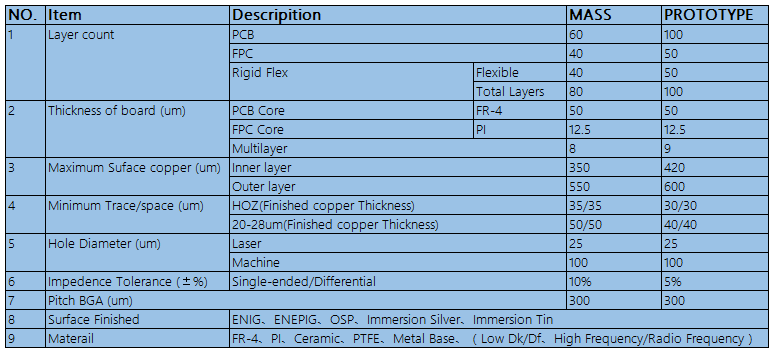

The company is always technology-oriented and provides cutting-edge services and high-end Multilayer PCB, Flex PCB, Rigid Flex, Anylayer and Backboard products for the world. In 2012, the company has possessed the capacity of 2-100l Rigid Flex, 2-20l MLFPC, 12L Anylayer FPC in engineering production technology.

The company always provides services for the development of the global electronic industry with its leading products and technologies. Its products cover a variety of fields, including high-speed railway, medical care, aerospace, communications, industrial control, etc, providing the source and impetus for the development of the global electronic industry.




The company has 80 engineers and technicians with rich industry experience and expertise, and provides customers with professional and timely engineering technical consulting and engineering data processing services;

Core values: unity, pragmatism, innovation and win-win, guided by cutting-edge technologies;

Objective direction: oriented by cutting-edge technology, providing customers with the best products and services;

C-flex people have been working hard to adhere to core values, be oriented by cutting-edge technologies, contribute to the advance and development of the global electronics industry.

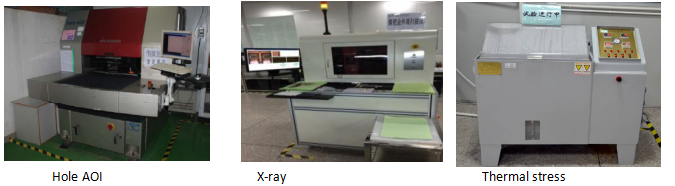

In the process of quality control, the company invested a lot of quality testing instruments and equipment to ensure process and shipment quality requirements.

The company has passed a number of international standards certification, covering the industry's systematic management requirements.

Create first - class quality, first - class service, first - class timeliness and finally achieve first - class manufacturing.



In order to ensure that the products meet the requirements of 5G Internet of things, our company provides the raw materials for well-known manufacturers at home and abroad, such as panasonic, dupont, ISOLA, NELCO, ROGERS, SY, ITEQ, Arisawa, Tatsuta, Innox, Taiyo, DOW, Arlon, Taconic, Taiflex, SK, Doosan.There is the different of material,such as Epoxy resin,Teflon,Metal base,LCP,Ceramic,Polyimide.




Products used in many fields,Communication industry,Automotive industry,Medical electronics,Industrial automatic,Aerospace field,Military filed of radar of senser, Astronomical of senser. The many fields of high frequence connector.

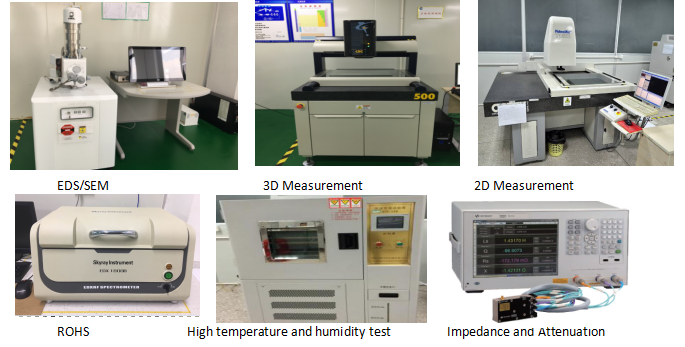

Complete laboratory construction to provide accurate testing of quality process and products.




Frontier Circuit Technology co.,LTD

Provides you with the best PCB manufacturing and service.
